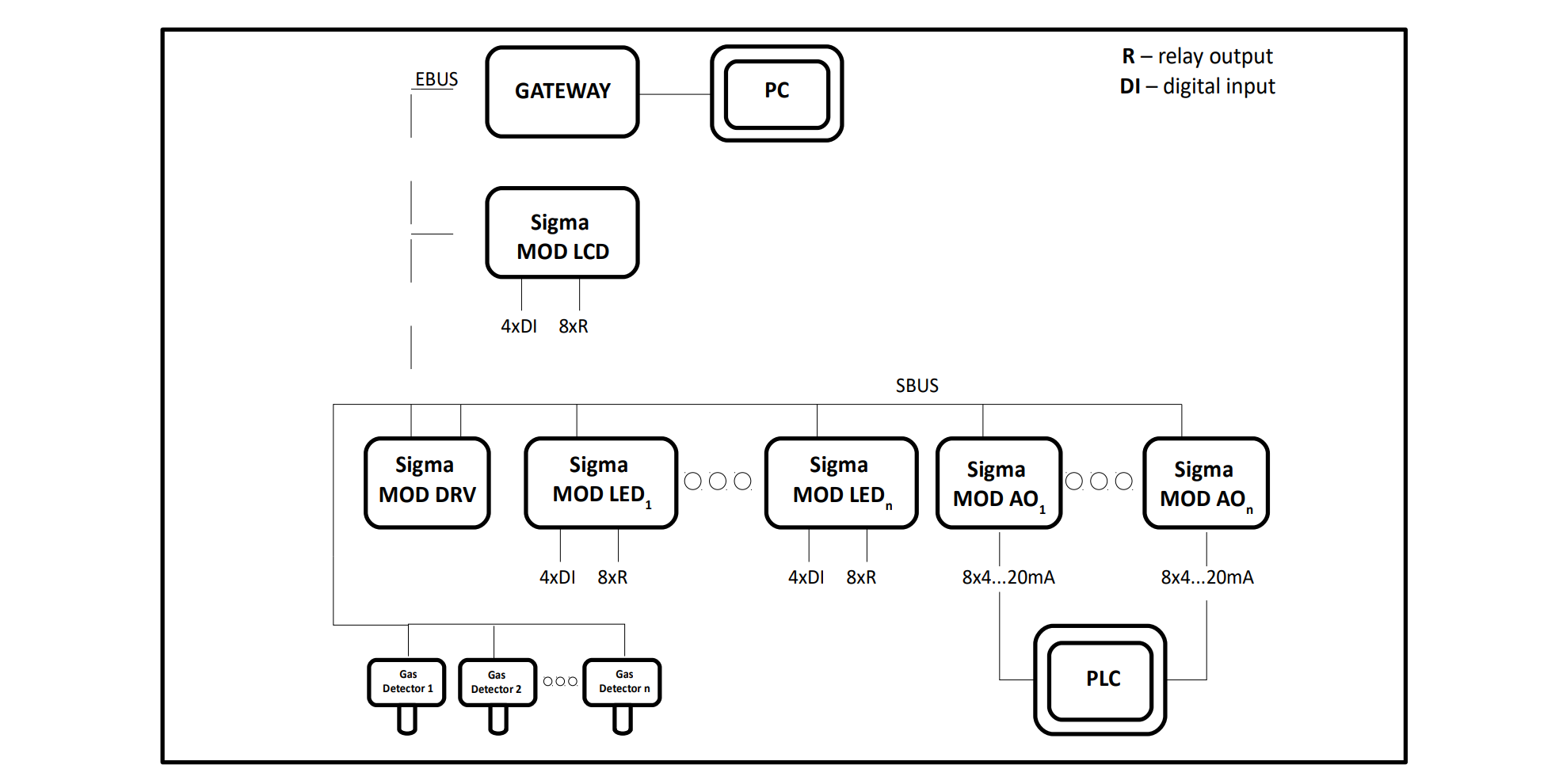

1/1 Control Unit Modules Sigma MOD AO Product code: PW-036-A Sigma MOD AO is a device designed for collaboration with gas detectors and other associated appliances to make up an overall system Sigma Gas developed to provide gas safety on the supervised area. See full description Functionalities: Certificates: Product description Technical details Sigma MOD AO is a device designed for collaboration with gas detectors and other associated appliances to make up an overall system Sigma Gas developed to provide gas safety on the supervised area. Integration of gas monitoring devices with comprehensive automation and control systems deployed in existing industrial and other facilities is frequently carried out by means of current loops with 4 –20 mA signals. Therefore there is a need to set up an interface between the Sigma Gas system that uses digital transmission of information on one side and existing systems of field automation with the current loop 4 – 20 mA to enable easy combining of the both systems. It is the task that is entrusted to the Sigma MOD AO module described in this leaflet. Power supplyVCC 10 – 30 V Power consumption 10 W EnvironmentTemperatures 10 – 50°C Humidity 10 – 80% long term 0 – 99% short term Pressure 1013 ± 10% hPa pH 5,5 – 7 IP IP20 Parameters of analogue outputsRLOAD_MAX 750 Ω Parameters of digital inputsRIN 10 kΩ Inactive 0 – 1 V Active 10 – 30 V Any polarisation Pick-up time for output changeover > 1s Digital communication parameters Electric standard RS-485 Communication protocol Sigma BUS Integrated signalling equipment (optical) LED controls Dimension See User manual Acceptable cables 1 – 2 mm2 (cable lugs 2 x 1 mm2 or 2 x 0.75 mm2 should be used for double wires) Enclosure material Self-extinguishing ABS / PC Weight 0.2 kg Lifetime 10 years Mandatory periodic inspection Every 12 months Mounting DIN-35 / TS35 rail Placement and role in the system Files to downloadDatasheets: Sigma MOD AO Control Unit Module - Datasheet Download fileUsers's manual:Sigma MOD AO Control Unit Module - User Manual Download fileCE declarations:Sigma MOD AO Control Unit Module - Declaration of Conformity Download file Related products Control Unit ModulesSigma MOD LEDControl Unit ModulesSigma MOD LCDControl Unit ModulesSigma MOD DRV
