Accessories

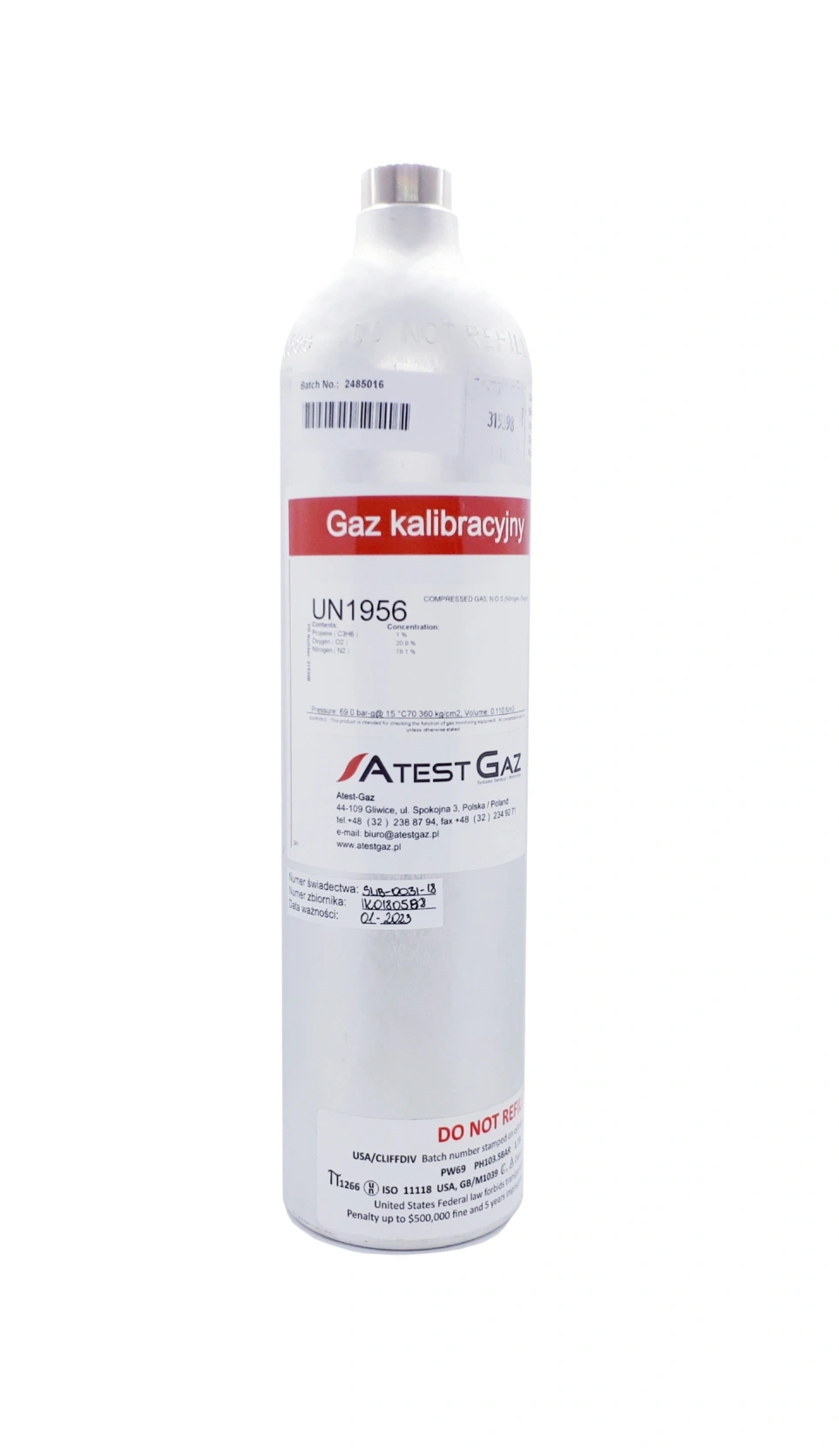

Gas cylinders with reference gases

The gas mixtures are typically used to check operability of gas detectors and to calibrate their characteristic curves.

See full description
Functionalities:
Product description

Gas mixtures are prepared pursuant to the gravimetric method (in line with the requirements of ISO 6142). The topmost care in preparation of mixtures combined with advanced technologies applied to manufacturing of cylinders and filling them with gas allows for the optimum accuracy of mixtures composition and the maximum achievable duration of the mixtures stability. The gas mixtures are typically used to check operability of gas detectors and to calibrate their characteristic curves. Beside easy available standard mixtures (that are mostly used to verify operation of gas detectors) also other dedicated mixtures can be provided according to individual recipes required by customers.

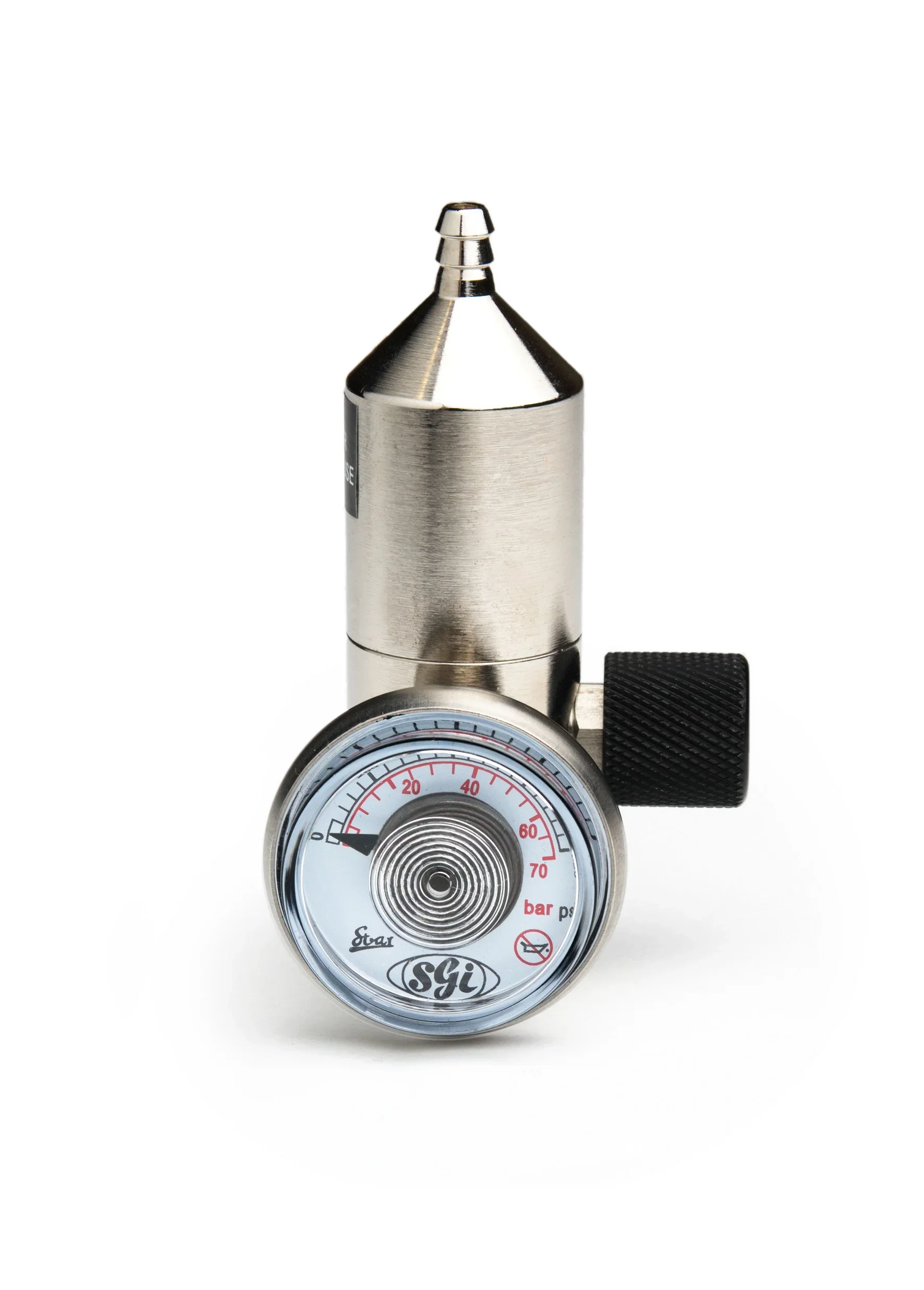

Cylinders with calibration gases need application of flow control valves with the constant or adjustable flow.

Gas cylinders delivered by our company are disposable and are accompanied with the following documents:

  • certificated of the gas composition analysis,
  • Material Safety Data Sheet (MSDS) for the gas filling the cylinder.

Additional benefits:

  • Broad variety of gas mixtures and test gases,
  • Lightweight and handy cylinders, perfectly suitable for field applications,
  • Perfect accuracy of mixture blending owing to the gravimetric method of filling,
  • No rental fees for cylinders,
  • Easy-to-use equipment for filling of cylinders,
  • Cylinders are in compliance with effective European standards and regulations.



Parameters  Approximate amount of gas in the cylinder
(Liters)
34 58 110
Capacity 0,85 0,85 1,6
Pressure ( bar ) 34 69 69
Dimensions (mm)
Height 281 359 359
Diameter 74 90 90
Weight of an empty cylinder (kg) 0,62 0,62 1,16
Valve outlet 5/8″

18 UNF C10

5/8″

18 UNF C10

5/8″

18 UNF C10

Compliance with regulations EN12205 EN12205 EN12205
Files to download
Datasheets:
Gas cylinders with reference gases - Datasheet
Download file
