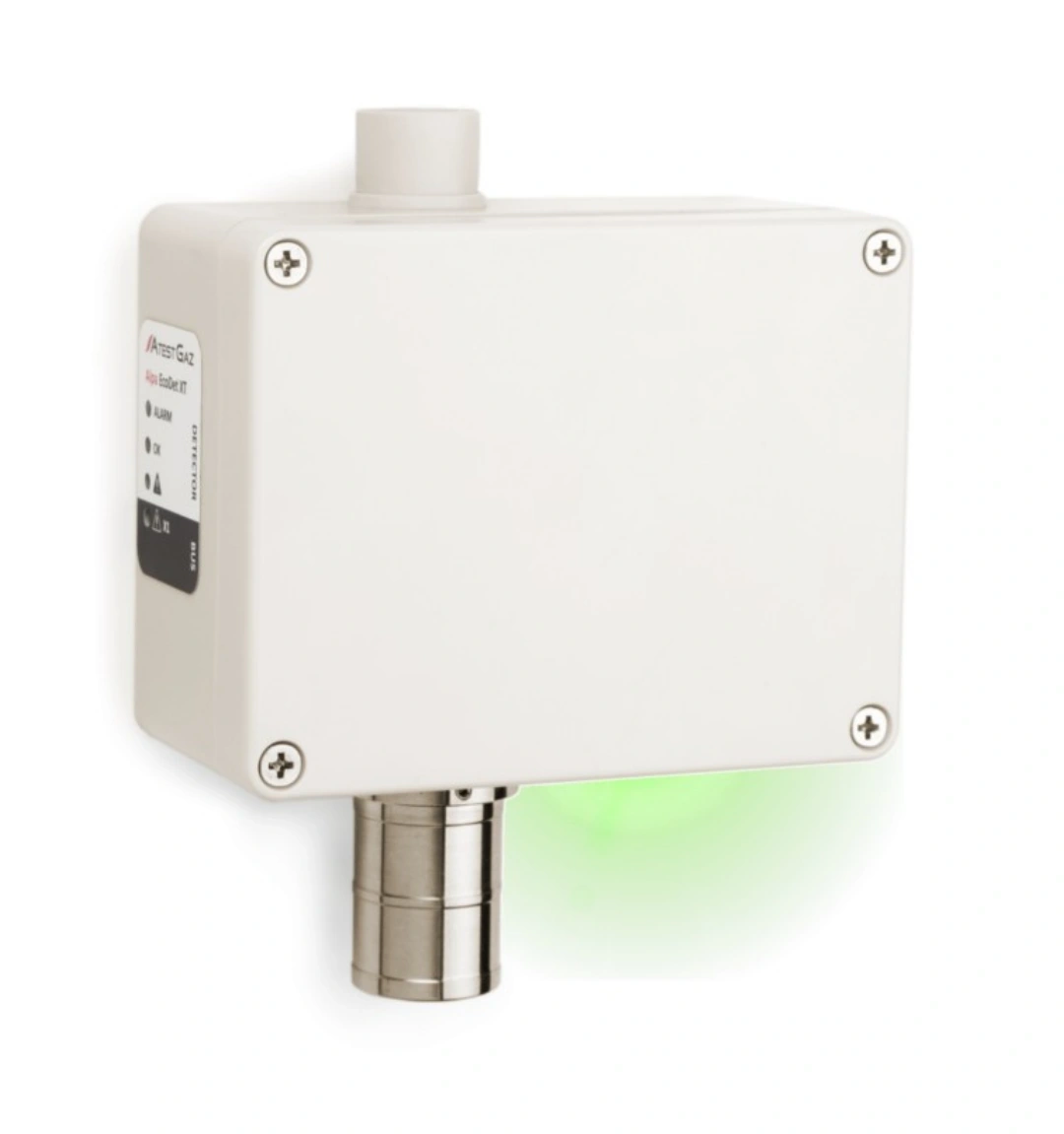

1/1 Gas Detectors Alpa EcoTerm XT Product code: PW-100-NG The Alpa EcoTerm XT Gas Detector is an advanced and versatile device designed for detection of methane concentration in public access facilities, such as boiler houses, industrial halls or other gas-heated facilities. See full description Functionalities: Certificates: Product description Technical details Supported gases The Alpa EcoTerm XT Gas Detector is an advanced and versatile device designed for detection of methane concentration in public access facilities, such as boiler houses and industrial halls. Presence of the hazardous gas is revealed by means of a catalytic sensor, which guarantees reliable operation of the device without false alarms and, in consequence, smooth operation of the gas detection system deployed on the monitored facilities. The detectors are immune to humidity, variations of ambient temperature and presence of other gases. The device measures concentration of methane within established time intervals and information about exceeding of permissible thresholds it provided to the system operator when the high-power LED indicator provided in the bottom part of the device is on. Such a solutions enables reliable identification of the detector status from the distance even up to several meters. The communication between the detector and the master Control Unit is provided by the 4 – 20 mA output signal. The Alpa EcoTerm XT Gas Detector is not designed for installation in areas with potentially explosive atmospheres. Power voltage VCC 10 – 42 V ICC 160 mA Environment Ambient temperatures -20 – +50 °C -20 – +50 °C ( storage ) Humidity 10 – 90% long term 20 – 80% long term ( storage ) 0 – 99% short term Pressure 1013 ± 10% hPa Detected substance Methane (CH4) Measuring range 0 – 50% LEL Standard configuration warning 1 10% LEL warning 2 15% LEL alarm 20% LEL IP IP43 Digital input parameters RIN 200 Ω Analouge output parameters RLOAD_MAX 200 Ω The output signal according to the operating status of the detector Failure <0.1 mA Operation 4 mA Warning 1 9 mA Warning 2 11 mA Alarm 15 mA Integrated signalling equipment (optical) LED controls Protection class III Cable glands (cable diameter range) Cable glands pressed into installation pipes – pipe diameter 16 mm Multi-range cable glands – cable diameter 3.5 – 12 mm Acceptable cables 0.25 – 1.5 mm2 – solid wire 0.25 – 1 mm2 – stranded wire Enclosure material ABS Weight 0.3 kg Mandatory periodic inspection Once a year ( Validity of the calibration certificate ) Mounting 4 holes for screws with the diameters of 4 mm methane (natural gas) Placement and role in the system Files to downloadDatasheets:Alpa EcoTerm XT Gas Detector - Datasheet Download fileUsers's manual:Alpa EcoTerm XT Gas Detector - User Manual Download fileCE declarations:Alpa EcoTerm XT Gas Detector - Declaration of conformity Download file Related products Control Unit ModulesAlpa MOD LED1Control Unit ModulesAlpa MOD LED 8Control UnitsEcoAlpa
