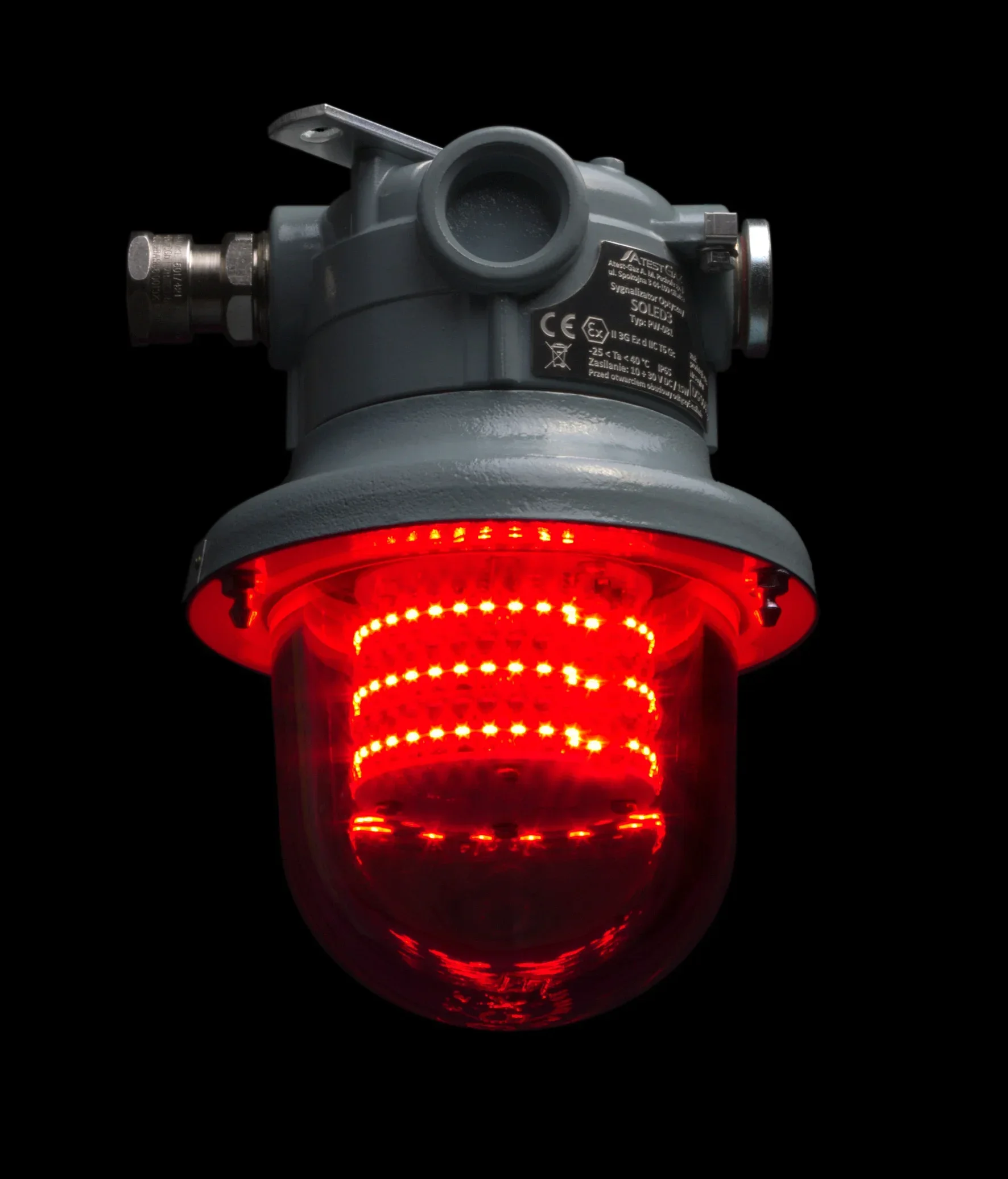

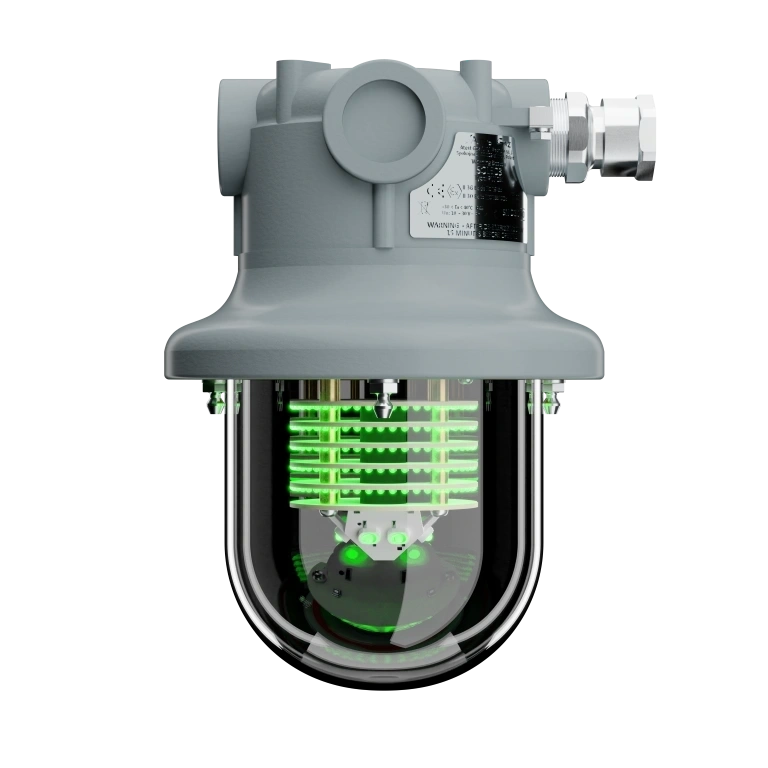

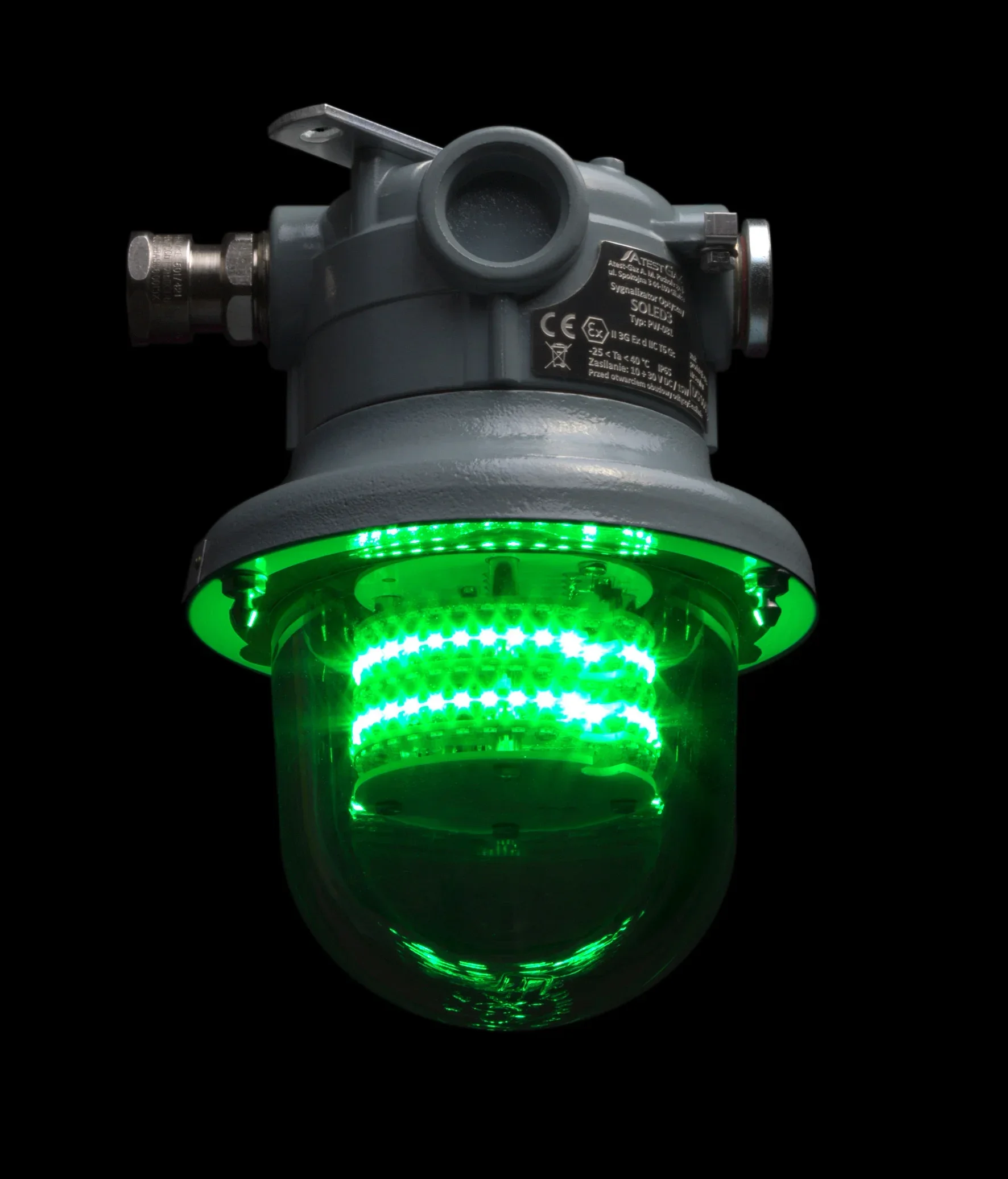

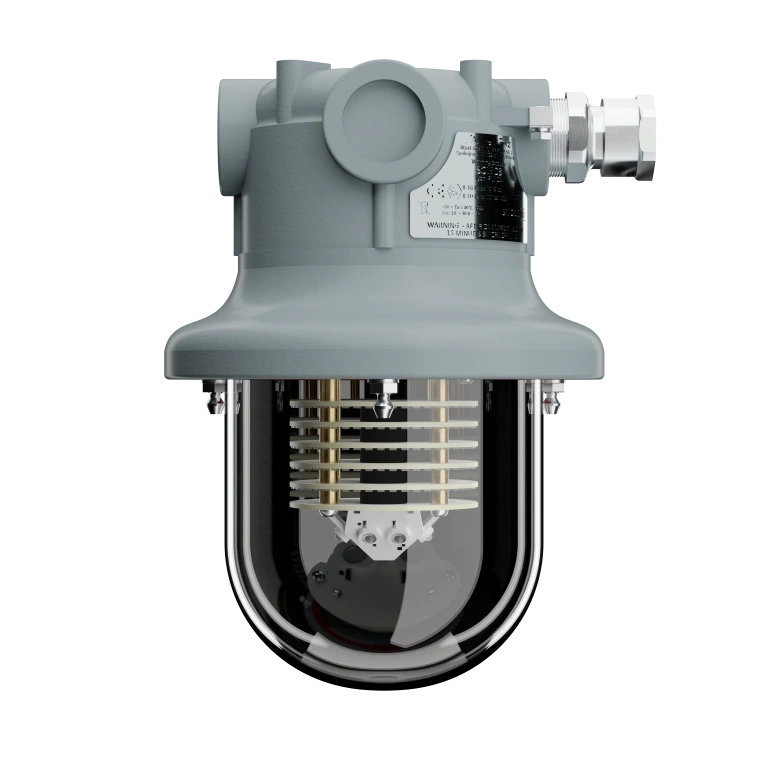

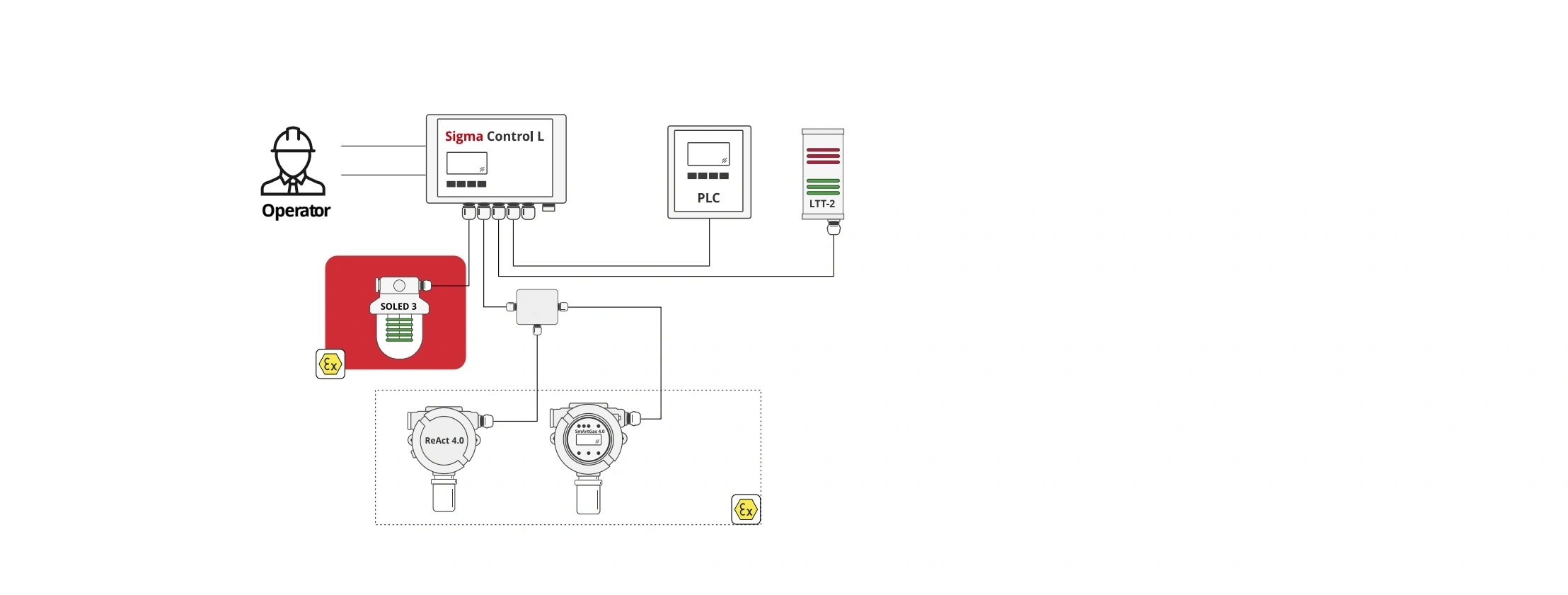

1/7 2/7 3/7 4/7 5/7 6/7 7/7 +2 Signallers SOLED3 Product code: PW-081 The flameproof SOLED3 warning beacon is a device for optical signaling in potentially explosive atmospheres, using light signals (different colours). See full description Functionalities: Certificates: Product description Technical details SOLED3 Warning Beacon is a device for optical signalling of hazards in potentially explosive areas, through lighting signals of different colours. SOLED3 Warning Beacon uses three independently set and controlled lighting sections with very bright LED lights. Thank to such a construction, SOLED3 is a very universal warning beacon, which can be used in many industrial applications. In Gas Safety Systems Sigma Gas, in potentially explosive zones, SOLED3 can play the role of a System Optical Signaller (for the following conditions: monitoring, alarm and failure). Thanks to an extended terminal block connectons and the ability of using 3 cable glands, it is possible to serially connect another device – optical or acoustic signaller. ATEX: II 3G Ex d IIC T6 Gc II 3D Ex t IIIC T85°C Dc Power supply Voltage Un 10 – 30 V Power consumption Pn max 34 W (depending on the number of LED segments and acoustic signaller) Power consumption per module Segment: Red and yellow segment: 2 W Green, blue adn white: 1.25 W Flash light module: 3 W Sounder: Sounder 24 W Standy power: 0.5 W (all light and sound warning components are off) For details related to special conditions of the beacon operation see Section 7 Environment Temperature PW-081-A-X-G: -30– 55°C (special conditions of use see section 7) Other: -30 – 40°C Humidity 10 – 90% long term 0 – 99% short term ATEX Ex II 3G Ex dc IIC T6 Gc Ex II 3D Ex tc IIIC T85°C Dc IP IP65 Modulation and flash time parameters Period About 1,5 s Modulation About 50% Flash time About 50 ms Parameters of digital communicationPort SBUS Electric standard Communication protocol RS-485 Sigma BUS Port ExBUS Electric standard Communication protocol RS-485 Modbus ASCII, RTU, 4800 – 115200 bod Parameters of control and signalling inputs Deactivated 0 – 1 V Activated 10 – 30 V Parameters of acoustic signaller outputsVoltage Such as given on the power terminals (terminals 1 and 2) Current maximum 0.8 A Optical signalling LED Light intensity maximum 60 Cd (depending on the number of modules and their colour) Protection class III Dimension See User Manual Cable glands Cable diameter range 4 – 12 mm, 10 – 16 mm For details see POD-066-ENG „Cable glands used in offered devices” External thread M20 x 1.5 Acceptable cable cores 0.5 – 2.5 mm2 Enclosure material Aluminium spray epoxy, glass globe Weight 1.6 kg Mandatory periodic inspection Every 6 months (see Section 6.4.1 of User Manual ) Lifetime of consumables See Table 5 ( User Manual ) Mounting Directly to the ceiling see Section 3 or with mounting bracket see Table 17 in User Manual Videos Placement and role in the system Files to downloadDatasheets:SOLED3 Warning Beacon - Datasheet Download fileUsers's manual:SOLED3 Warning Beacon - User Manual Download fileCE declarations:SOLED3 Warning Beacon - Declaration of Conformity Download fileOthers:SOLED3 / ETH 12MD Warning Beacon - Assembly instruction for the PW-064-WM7 bracket Download file Related products SignallersLTT2SignallersLTT4
