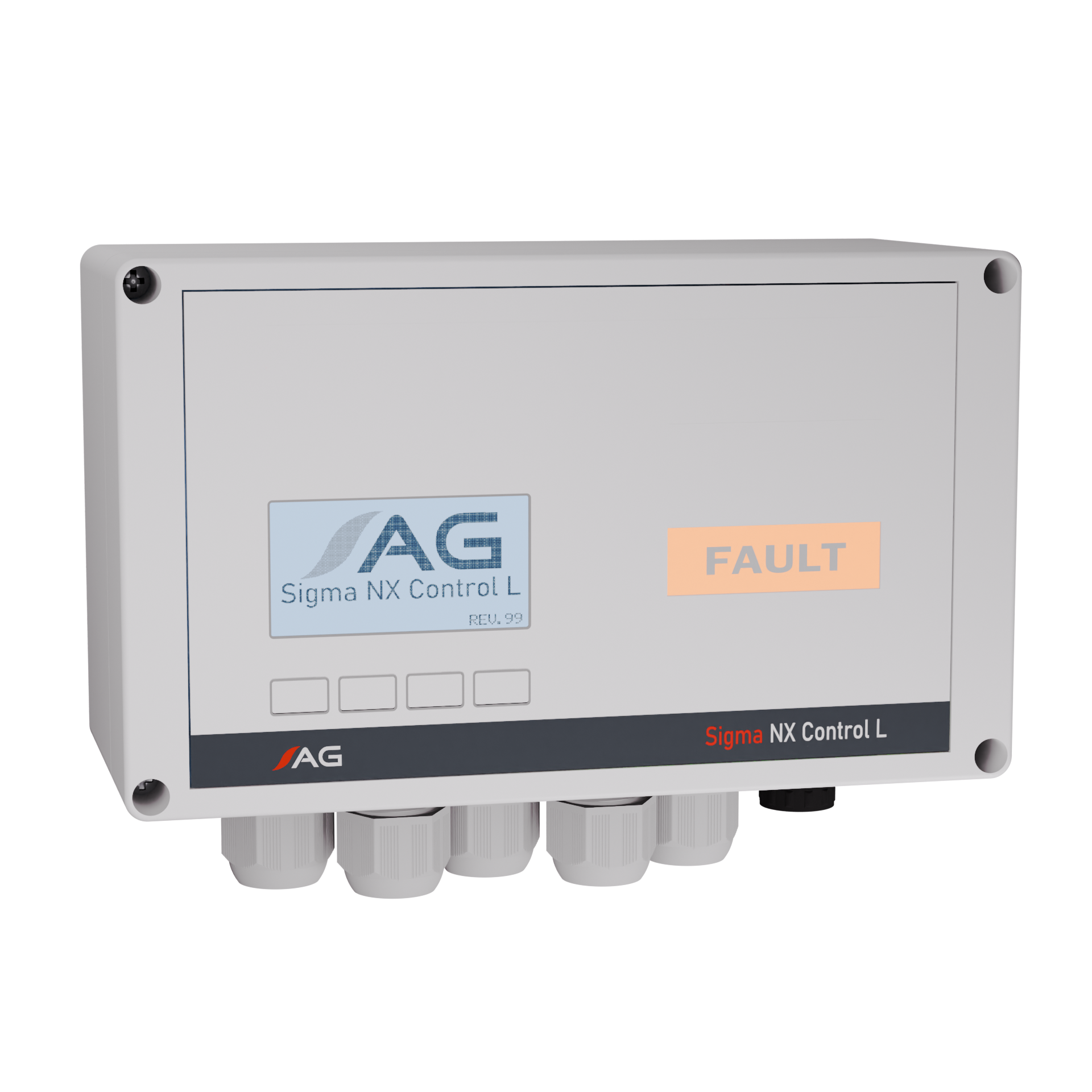

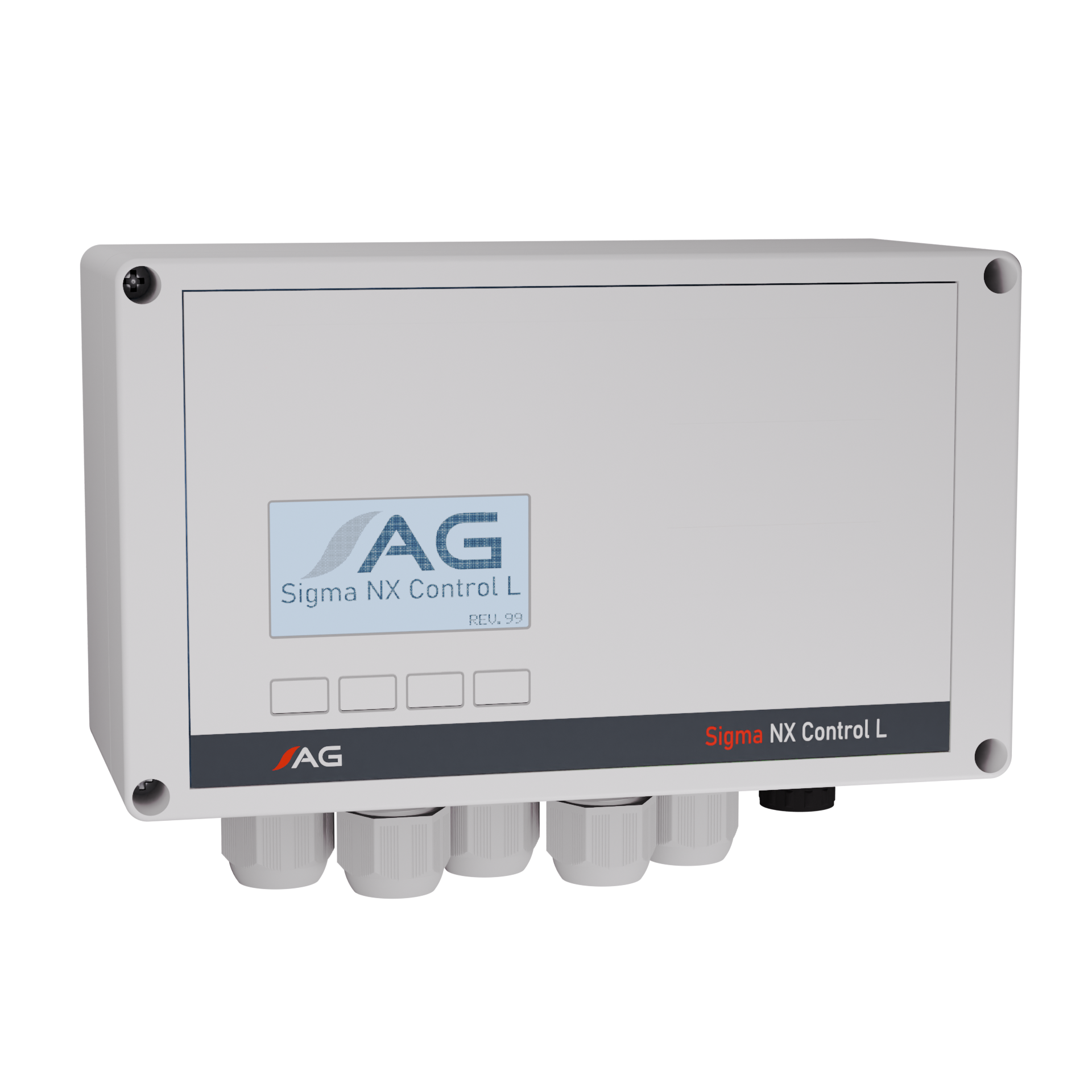

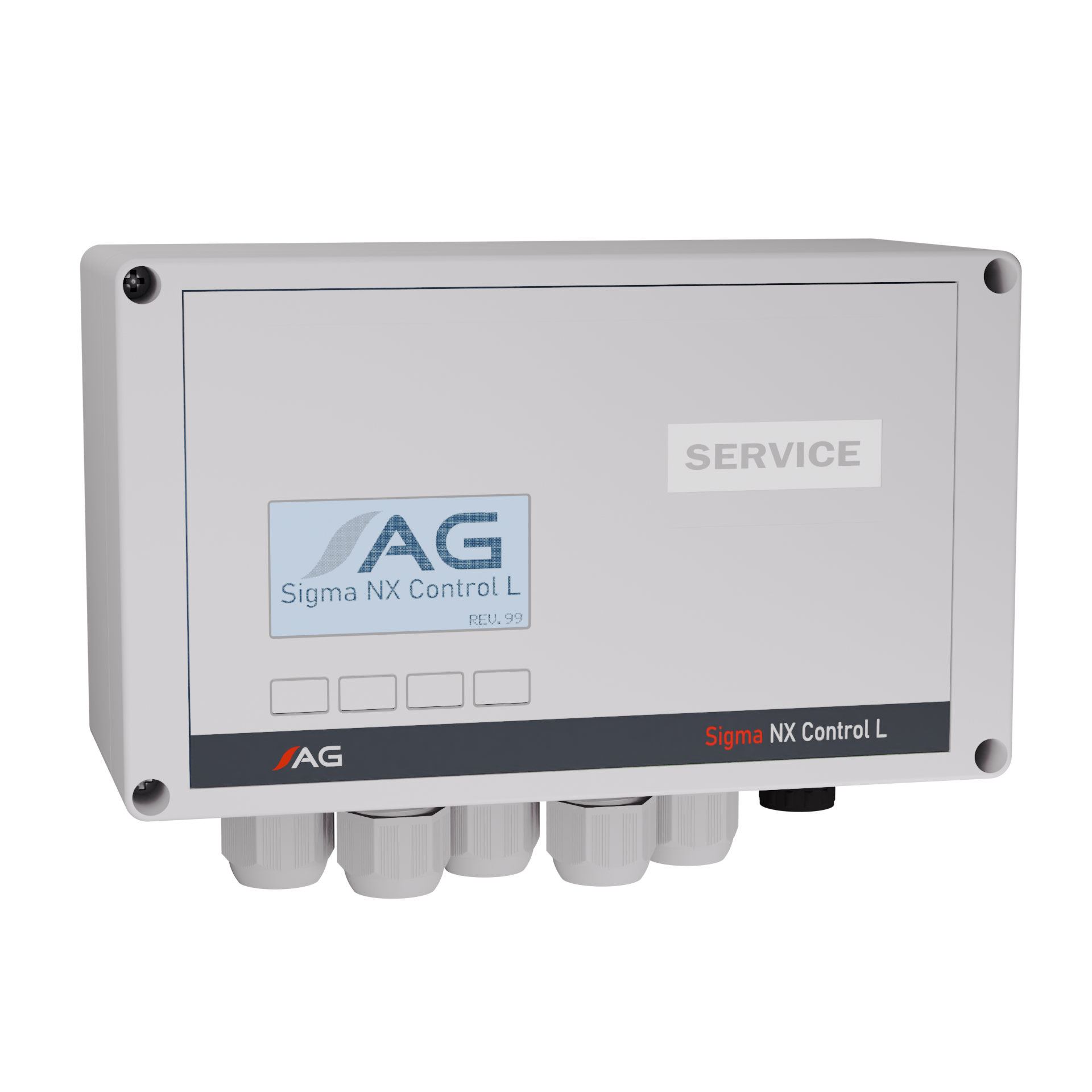

1/6 2/6 3/6 4/6 5/6 6/6 +1 Control Units Sigma NX Control L Product code: PW-139-A Sigma NX Control L is a control unit designed for managing small Gas Safety Systems. See full description Product description Technical details Sigma NX Control L is a control unit designed for managing small Gas Safety Systems. Its main purpose is to control, integrate, and continuously monitor all connected devices, including detectors and signalling devices, withing a single, cohesive system. Based on device readings, the unit automatically controls acoustic and optical signalling as well as actuating devices when a hazard is detected. The Sigma NX Control L unit is equipped with a unique display that enables an immediate and clear assessment of the status of the entire Gas Safety System at a glance, without the need to analyze data on the screen. This module therefore provides GasOK functionality. Key features: Built-in system optical indicator: The Sigma NX Control L unit is equipped with a unique display that enables an immediate and clear assessment of the status of the entire Gas Safety System at a glance, without the need to analyze data on the screen. This module therefore provides GasOK functionality. Supported devices: From 1 to 20 gas detectors and up to 4 signaling devices on a single shared RS485 bus. Signaling zones: Supports 3 operating zones – 2 fully configurable user zones and 1 built-in master zone that includes all devices in the system. Configuration: Configuration of the unit and connected devices is carried out using dedicated PC software. Rated power supply parameters VCC Power consumption 230 V~ ± 10%, 60 W 21 – 29 V , 60 W Environment (operation and storage)Ambient temperature range for power supply 230 V ~: -10 – +40 ⁰C for power supply 24 V : -10 – +50⁰C Relative humidity range 10 – 90% long term, 0 – 99% short term, without condensation IP IP65 Output capacity For power supply 230 V ~: 1,5 A For power supply 24 V : 2,3 A For signaller output, independent of the power, max 1.15 A Digital input parameters RIN Inactive Active Time parameters 10 kΩ 0 – 1 V any polarization 10 – 30 V any polarization The shortest pulse duration noticeable by the system is 0.2 s Digital output parametersRelays 3 pieces, current carrying capacity DC11: 230 V / 0.25 A DC1: 24 V / 3 A AC1: 230 V ~ / 3 A Indicator outputs Active, 24 V / 1.15 A, fused Protection class I – for 230 V ~ power supply III – for 24 V power supply Unit design according to class II Digital communication parametersPort DETECTORS BUS Electric standard Communication protocol RS – 485 Sigma BUS Port GTW Electric standard Communication protocol RS – 485 Modbus ASCII / RTU Port serwisowy Electric standard Communication protocol USB USB-C Integrated signalling equipment (visual) LCD display, monochromatic, approx. 2.4” LED indicator Integrated signalling equipment (audible) 60 dB from 1 m Required protection230 V ~ power supply Over-current breaker type C2 on L and N wires 24 V power supply Over-current breaker type B6 on one of the poles Cable glands (cable diameter range) 4 x 5 – 10 mm 1 x 8 – 14 mm (cable gland of detector line) Acceptable cables 0.2 – 2.5 mm2 (cable lugs 2 x 1 mm2 or 2 x 0.75 mm2 should be used for double wires) Enclosure material Polycarbonate Weight 1,5 kg Mounting 4 holes for 4 mm dia. screws, spacing 189.3 x 90 mm Files to downloadDatasheets:Jednostka Sterująca Sigma NX Control L - Karta katalogowa Download fileUser's manual:Jednostka Sterująca Sigma NX Control L - Podręcznik Użytkownika Download file
