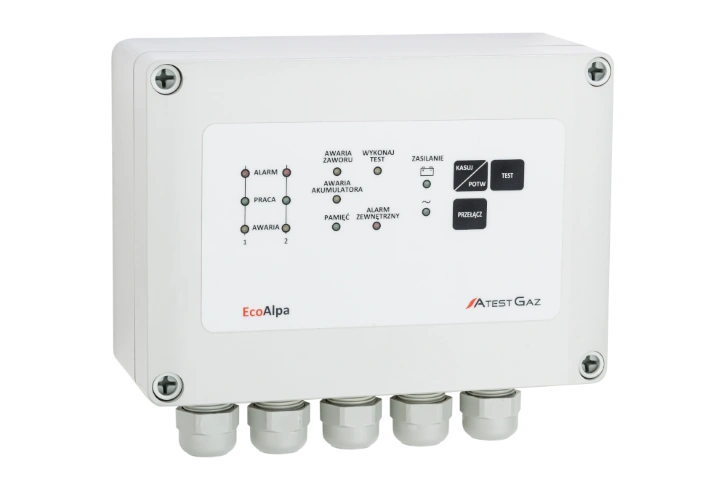

1/1 Control Units EcoAlpa Product code: PW-054-X EcoAlpa is a two-channel control unit designed to work with gas detectors with a 4 – 20 mA interface – it is responsible for visualizing the operation of the entire Gas Safety System and for developing appropriate output signals. See full description Functionalities: Certificates: Product description Technical details The EcoAlpa Control Unit is a dual port control device designed for collaboration with gas detectors communicating by means of 4..20 mA control signals. It has analog outputs to connect a sound and optic warning device and digital lines for transmission of the system status information. In addition, the control unit can be integrated with a superior automation system, for instance BMS. The EcoAlpa unit is available in several manufacturing options that are able to perform selected functionalities of the system, such as control for the gas shutoff valve (various gas types) or switching the system over to the backup power supply voltage to continue operation of the system when the mains voltage disappears. The table below summarizes details of the types and options of the control unit: Lp. Product key Type of associated valve Distance to valve Power backup Accumulator Amount of channels 1 PW-054-0-0 – – – – 1,2 2 PW-054-0-UPS – – Yes 12V 1.3Ah 1,2 3 PW-054-VL-0 12V, coil resistance ≥ 4Ω, power ≤ 36W Small – 12V 1,3Ah 1,2 4 PW-054-VR-UPS 12V, coil resistance ≥ 1Ω, power ≤ 144W Big ( connecting valve using external power module ) Yes 12V 5Ah 1,2 5 PW-054-V230-0 230 V Big – – 1,2 Power supply Voltage Vcc 230 V ~ ± 10% Power 10 W Environment Ambient temperatures 0 – 40 °C 0 – 40 °C ( storage ) Humidity 10 – 90% long term 30 – 90 % long term 10 – 99% short term IP IP65 Analogue input parameters RIN 200 Ω UZ 10.5 – 14 V IZ 160 mA Number of analogue inputs 1 – 2 Parameters of the input for an external alarm signal Potential-free contact Below 10 Ω inactive Above 5000 Ω active Minimum duration of the switchover pulse > 1s Control output for the shutoff valveRange of load resistance /power PW-054-VL-0: ≥ 4 Ω / ≤ 36 W PW-054-VR-UPS: ≥ 1 Ω / ≤ 144 W Guaranteed limit of the shutoff voltage VR-UPS: ≥ 1 Ω / ≤ 144 W 10.5 V Maximum resistance of the power supply line See User Manual Duration of the shutoff pulse 0.5 s Protection class 0.5 s Digital output parameters Relay PK1 – PK3 Not protected 230 V ~ / 1 A 230 V / 0.25 A 24 V / 1 A Voltage outputs OC1, OC2 Voltage 14 V Total current I < 300 mA Integrated signalling equipment (visual) LED controls Integrated signalling equipment (audible) 60 dB , 1 m distance Required protections Power voltage Overcurrent fuse switch C2 in L and N lines Duration of operation with backup voltage 1 h Cable glands Cable diameter range 5 – 10 mm Number of glands 5 Cross-section of wires for clamping terminals 1 – 2.5 mm2 Cross-section of wires for the valve connector 1.5 – 4 mm2 Enclosure material ABS Lifetime 10 years Mandatory periodic inspection Every year Files to downloadDatasheets:EcoAlpa Control Unit - Datasheet Download fileUsers's manual:EcoAlpa Control Unit - User Manual Download fileCE declarations:EcoAlpa Control Unit - Declaration of Conformity Download file Related products Gas DetectorsAlpa EcoWent XTGas DetectorsAlpa EcoDet XTGas DetectorsAlpa EcoTerm XTSignallersAlpa SOLERTAccessoriesManualy reset solenoid valve MSVControl UnitsEcoAlpa5
