Sigma MOD LED

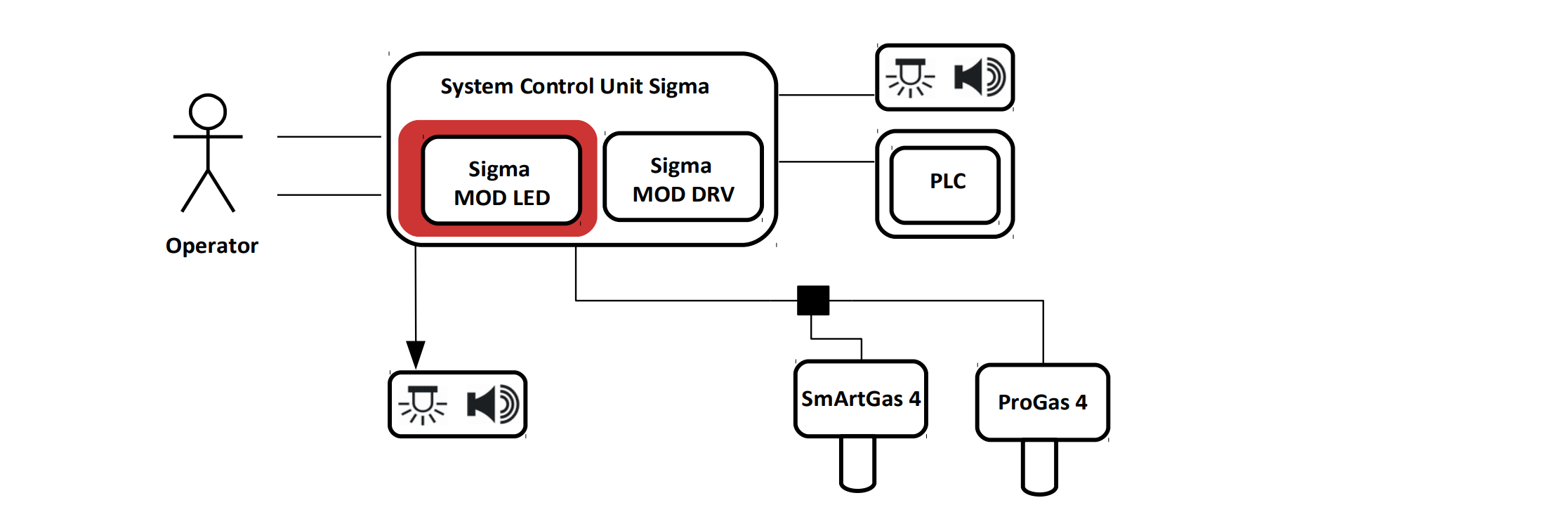

The Control Unit Module Sigma MOD LED, is a component of the Gas Safety System Sigma Gas. The module’s functions include: communication with gas detectors, control of visual and sound indicators by means of contact outputs, transmission of the status of the gas monitoring network to other external systems via both its RS-485 digital link and contact outputs, display of system status to the operator by means of visual indicators and an integrated buzzer, and operator inputs for the control of the gas monitoring network, including, binary inputs and the RS-485 digital link.

Basic functionalists:

• handling up to 32 gas detectors,
• 8 relays outputs,
• 4 binary inputs,
• presentation of the gas detectors status (operation, exceeding the thresholds, its special conditions and diagnostic status),
• presentation of historical states (exceeding the thresholds, failures),
• control of the entire system operation.

The control unit module is designed to work with:

• Line 4.0 Gas Detectors,
• Control Unit Module Sigma MOD DRV,
• other devices compatible with the built-in input-output interfaces
