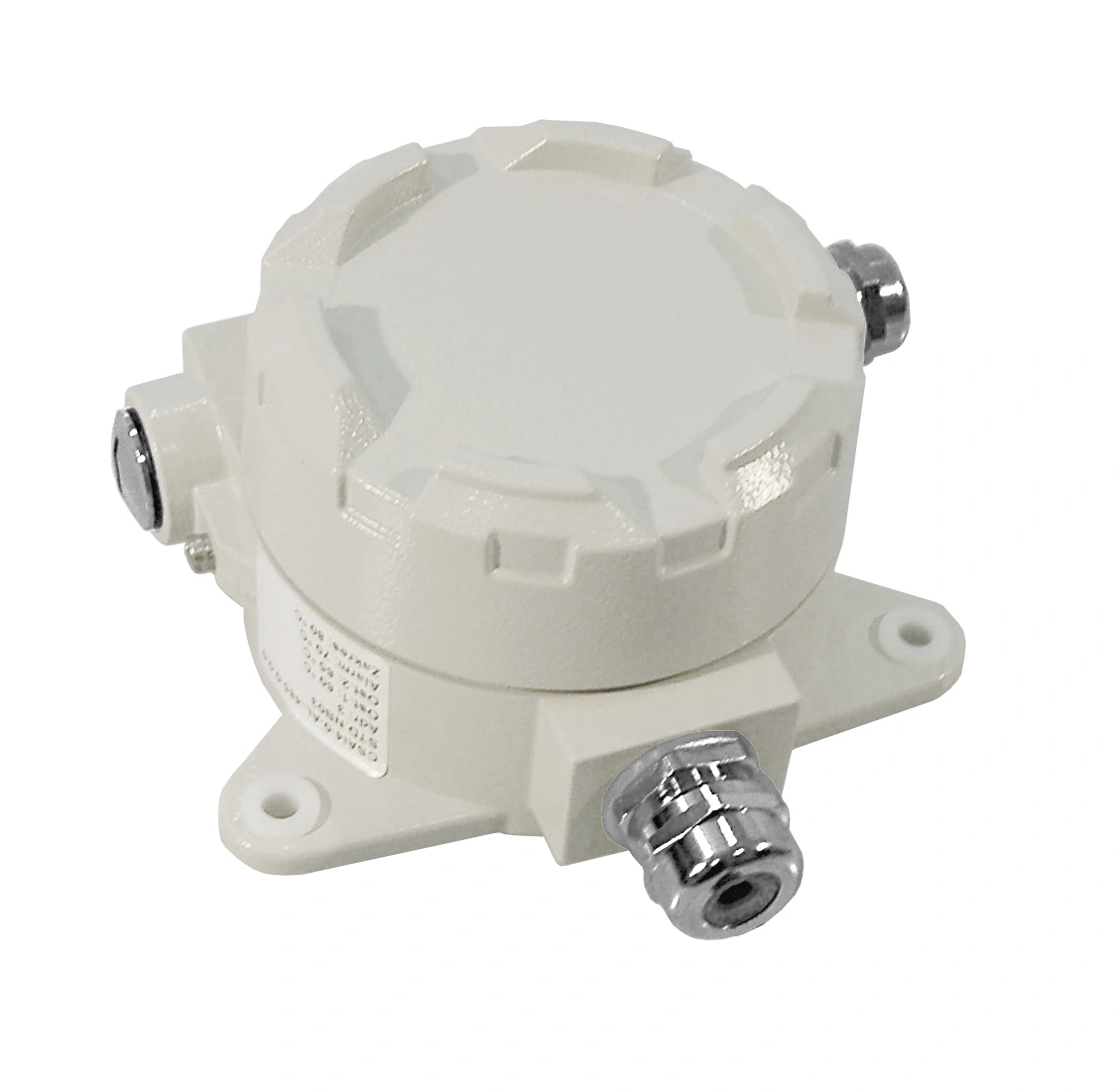

Signal Converter CNVS 4

Product code: PW-122-CSAI4-X

The Signal Converter CNVS 4 is not an independent device, it must be combined with a measuring instrument to make up a typical gas detector. Key advantages is remote operations – an external detectors can be installed far away from the converter at a poorly accessible location.

See full description

Functionalities:

Product description

Technical details

The Signal Converter CNVE 4/CNVS 4 is designed as a component of a Gas Safety System and is intended for operation under harsh environmental conditions of industrial plants with a broad range of ambient parameter variations (high temperatures, presence of corrosive gases, hazardous vapours, moisture and dust).

The signal converter is not an independent device, it must be combined with a measuring instrument to make up a typical gas detector. Key advantages of this device is remote operations – an external detectors can be installed far away from the converter at a poorly accessible location.

An important feature is also non-invasive calibration and configuration – calibration of the converter and setting of its parameters can be carried out with no need to open the converter enclosure or to shut down any other components of the Gas Safety System.

Power supply

V_CC

15 – 50 V

Power

0.5 – 4 W
(the value doesn’t include
the external gas detector supply current)

Environment

Ambient temperatures

-40 – 85 °C ( Operation )
0 – 40 °C ( Storage )

Humidity

10 – 90% long term ( Operation )
30 – 90% long term ( Storage )
0 – 99% short term ( Operation )
without condensation

Pressure

1013 ± 10% hPa

IP 63

Analog input 4 – 20 mA

R_IN

100 Ω

I_{CC_MAX}
(maximum power supply
current of the external detector)

200 mA

Analog output 4 – 20 mA

Output type

Sink / source

R_{load_MAX} (source mode)

300 Ω

U_{S_MAX} (sink mode)

30 V
(max. voltage between pins „S” and „-”)

Digital output parameters

Relays

3x Floating contacts,
24 V / 0.3 A,
Not protected against overloading

Digital communication parameters

RS-485

RS-485, Modbus ASCII,
Sigma Bus, 19200 Bd 7E1

Teta

Teta Bus

Parameters of wireless communication

Bluetooth 4.2

Protection class

III

Power cord

2.5 m

Dimension

See Figure 2 in User Manual

Cable glands

Cable diameter range

See Section 8 in User Manual

External thread

M20 x 1.5

Acceptable cables

0.5 – 2.5 mm2
(cable lugs 2 x 1 mm2 or 2 x 0.75 mm2
should be used for double wires)

Files to download

Datasheets:

CNVS 4 Signal Converter - Datasheet

Download file

Users's manual:

CNVS 4 Signal Converter - User Manual

Download file

CE declarations:

CNVS Signal Converter - Declaration of Conformity

Download file
