Valve Controller Control V

Product code: PW-121-X

The Control V device is a local controller for a gas shutoff valve.

The valve can be controlled by means of a binary signal (DI) or via the Teta data transmission interface. It is why the Control V Valve Controller perfectly enables extension of functionalities offered by any monitoring systems, in particular the Gas Safety System offered by Atest Gaz.

See full description
Functionalities:
Certificates:
Product description
Technical details

The Control V device is a local controller for a gas shutoff valve. Its location within close vicinity of the valve and a built-in rechargeable battery make it possible to avoid many problems related to voltage drops down long electric cables and conductors.

The valve can be controlled by means of a binary signal (DI) or via the Teta data transmission interface. It is why the  Control V Valve Controller perfectly enables extension of functionalities offered by any monitoring systems, in particular the Gas Safety System offered by Atest Gaz.

Power supply

Voltage Vcc

15 – 50 V

  • Power

3 W

Environment
  • Ambient temperatures

-20 – 40°C

  • Humidity

10 – 90% long term
0 – 99% short term

  • Pressure

1013 ± 10% hPa

IP

IP65

Two-state outputs parameters
  • Relay

Floating contacts, NO/NC
24 V / 0.1 A, not protected against
overloading

Control output for the shutoff valve
  • Range of load resistance/power

PW-121-L-X: ≥ 4 Ω / ≤ 36 W
PW-121-H-X: ≥ 2 Ω / ≤ 72 W

  • Guaranteed limit of the
    shutoff voltage

PW-121-L-X: ≥ 4 Ω / ≤ 36 W
PW-121-H-X: ≥ 2 Ω / ≤ 72 W

  • Maximum resistance of the
    power supply line

See User Manual

  • Duration of the shutoff pulse

0.5 s

Parameters of the input for an
external alarm signal

Connection via a potential-free
contact
Inactive for resistance below 10 Ω
Active for resistance above 3300 Ω
Minimum duration of the switchover
pulse > 1s

Digital communication parameters
  • Communication protocol

Teta BUS

Integrated signalling equipment (visual)

LED controls

Protection class

III

Cable glands
  • Cable diameter range

5 – 10 mm

Cross-section of wires for clamping terminals
  • Relay outputs, DI, TETA

0.08 – 2.5 mm2 (use sleeves 2 x 1 mm2
or 2 x 0,75 mm2 for twin conductors)

  • Power voltage

1 – 4 mm2 (use sleeves 2 x 1.5 mm2
or 2×1 mm2 for twin conductors)

Enclosure material

ABS

Weight

PW-121-L-X: 1.0 kg
PW-121-H-X: 2.5 kg

Mounting

4 screw holes 4 mm, hole spacing:
PW-121-L-X: 160 x 110 mm
PW-121-H-X: 110 x 110 mm

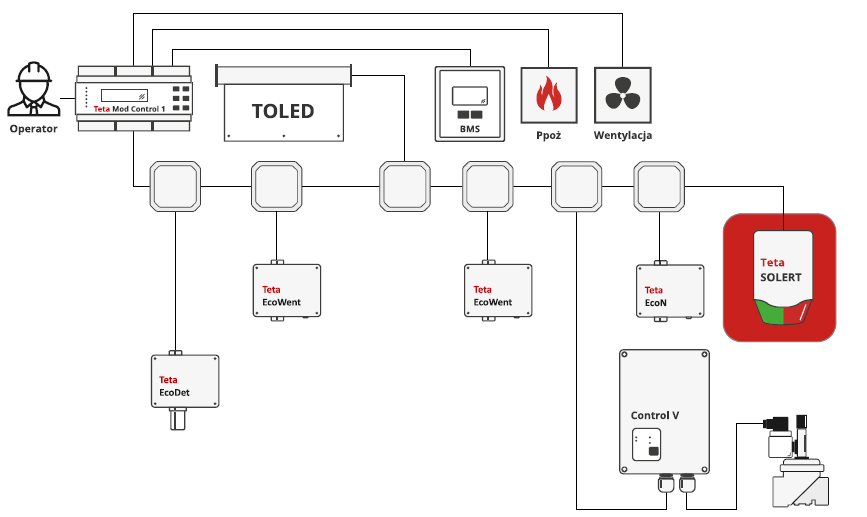

Placement and role in the system
