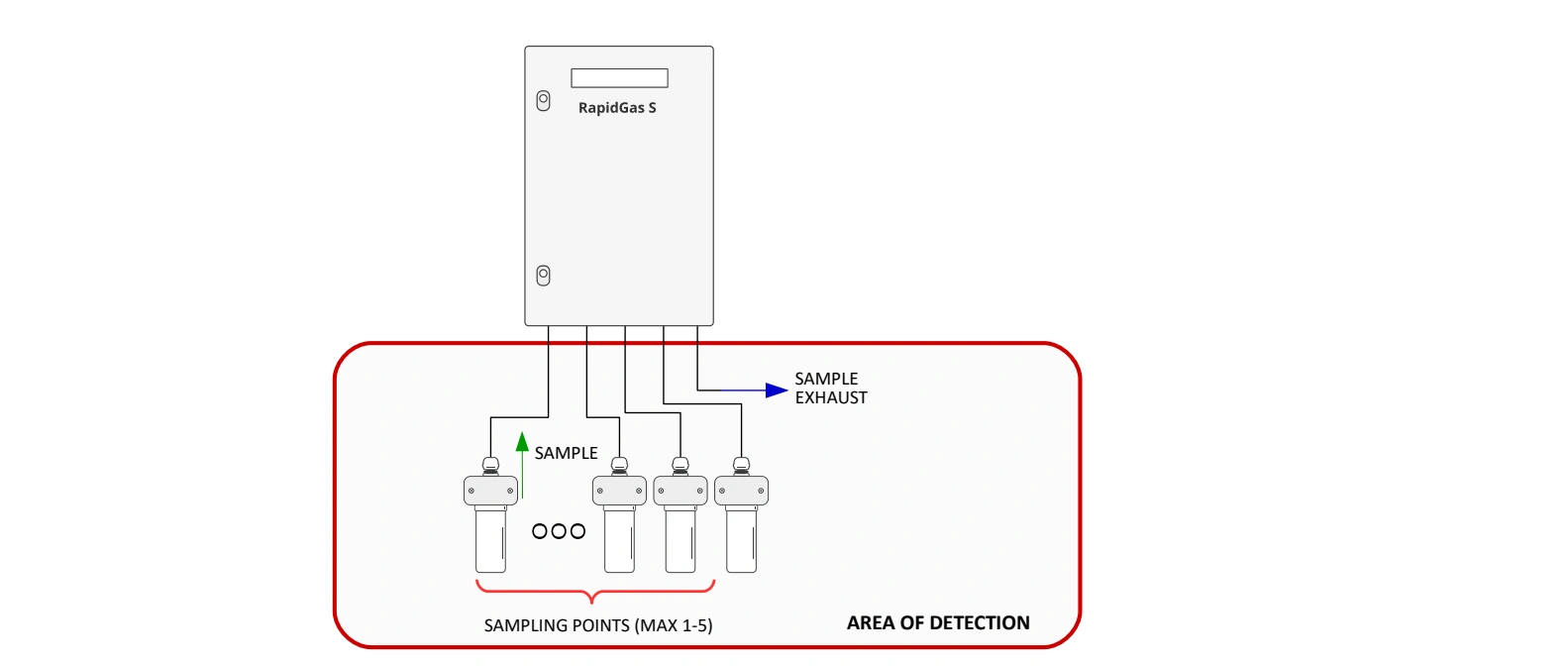

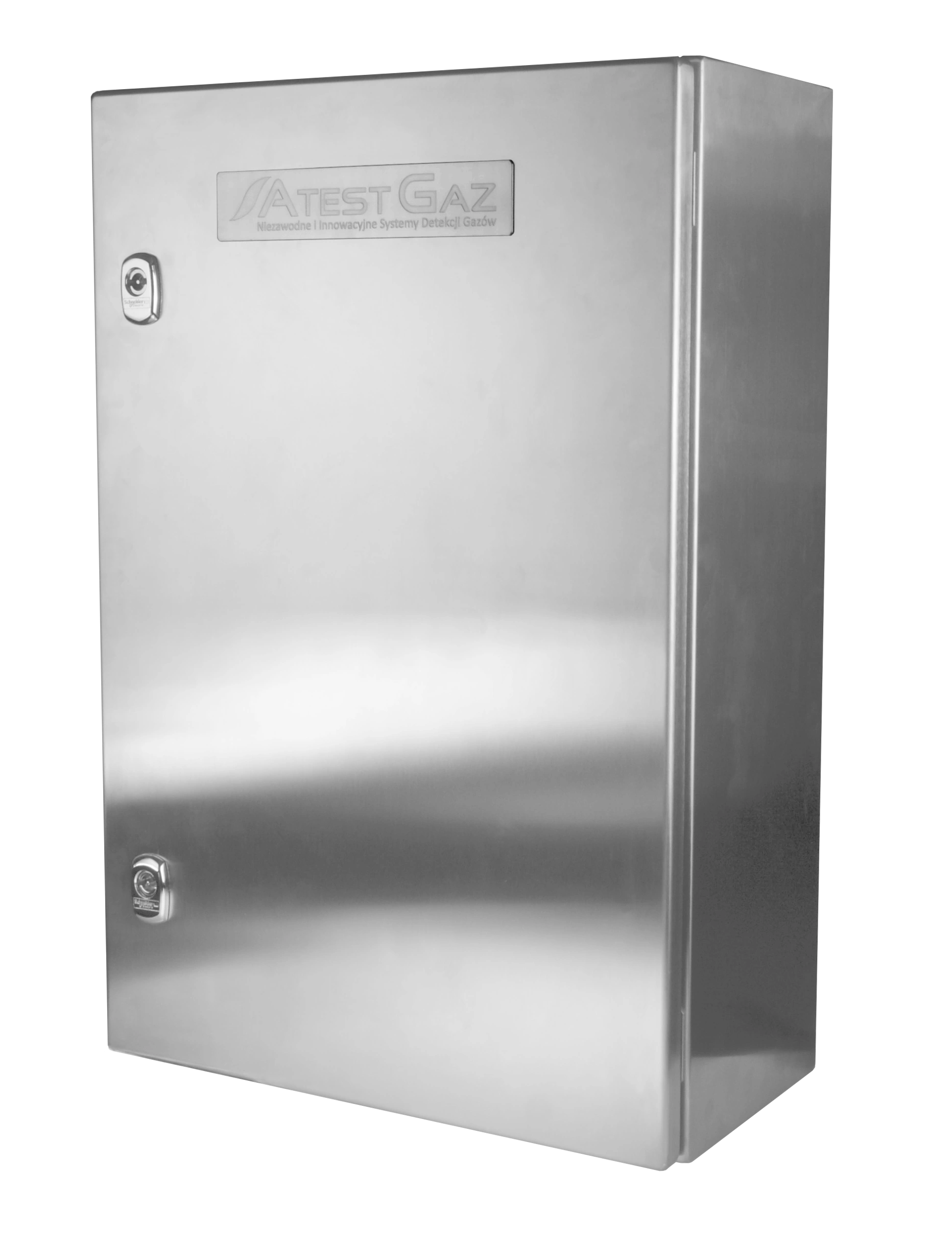

1/1 Gas Detectors RapidGas S Product code: PW-119-X The RapidGas S device is a multi-channel (1 to 5 channels) gas detector designed to measure concentration of toxic or explosive gas in surrounding atmospheres by aspirated sampling of gas mixtures at a specific number of locations. See full description Functionalities: Certificates: Product description Technical details The RapidGas S device is a multi-channel (1 to 5 channels) gas detector designed to measure concentration of toxic or explosive gas in surrounding atmospheres by aspirated sampling of gas mixtures at a specific number of locations. By means of sampling intakes, gas lines and a suction pump embedded inside the detector, gas samples are aspirated from the atmosphere and conveyed to gas sensors incorporated into the device interior. These sensors measure concentration of various gases and afterwards the samples are returned to the atmosphere. The RapidGas S is a general purpose hardware platform that makes it possible to collaborate with virtually all types of gas detectors. It enables customizing of the gas detection system design according to specific arrangements of the facility and local conditions, since the set of configurable parameters include types of gases to be detected, range and accuracy of measurements, response time, ambient temperature, humidity, etc. The Gas Detector can not be installed in potentially explosive atmospheres. Power supplyVoltage VCC 15 – 30 V / 230V ~ Power PCC 25 / 100 / 150 / 300 W Ambient temperatures Ta 0 – 50 °C / -28 – 40°C 0 – 40 °C ( Storage ) Humitidy 10 – 90% long term 30 – 90% long term ( Storage ) 0 – 99% short term Pressure 1013 ± 10% hPa pH 5.5-7 Sampling method Aspiration Number of measuring channels 1-5 Time parameters T90 depending on the type of sensor and the length and diameter of the gas path – see Calibration Certificate IP IP53 Protection class III Parameters of the pneumatic interface Type of compatible connector BSP 60° 1/4” Digital communication parametersPort Electrical standard Communication protocol RS-485 Sigma BUS Cable glands Cable diameter range See details in POD-066-ENG „ Cable glands used in offered devices” External thread M20x1.5 Acceptable cables 0.5 – 2.5 mm2 (solid wire) 0.5 – 1.5 mm2 (multi-wire cable) Enclosure material Aluminium spray epoxy Weight 5-20 kg Mandatory periodic inspection Every 12 months (Calibration Certificate validity) Videos Placement and role in the system Files to downloadDatasheets:RapidGas S Gad Detector - Datasheet Download fileUsers's manual:RapidGas S Gas Detector - User Manual Download fileCE declarations:RapidGas S Gad Detector - Declaration of Conformity Download file Related products Gas DetectorsRapidGas EAccessoriesGas Sampling PointGas DetectorsSmArtGas 4Gas DetectorsReAct 4Gas DetectorsProGas 4Control UnitsSigma Control LControl Unit ModulesSigma MOD LEDControl Unit ModulesSigma MOD LCDControl Unit ModulesSigma MOD DRV
