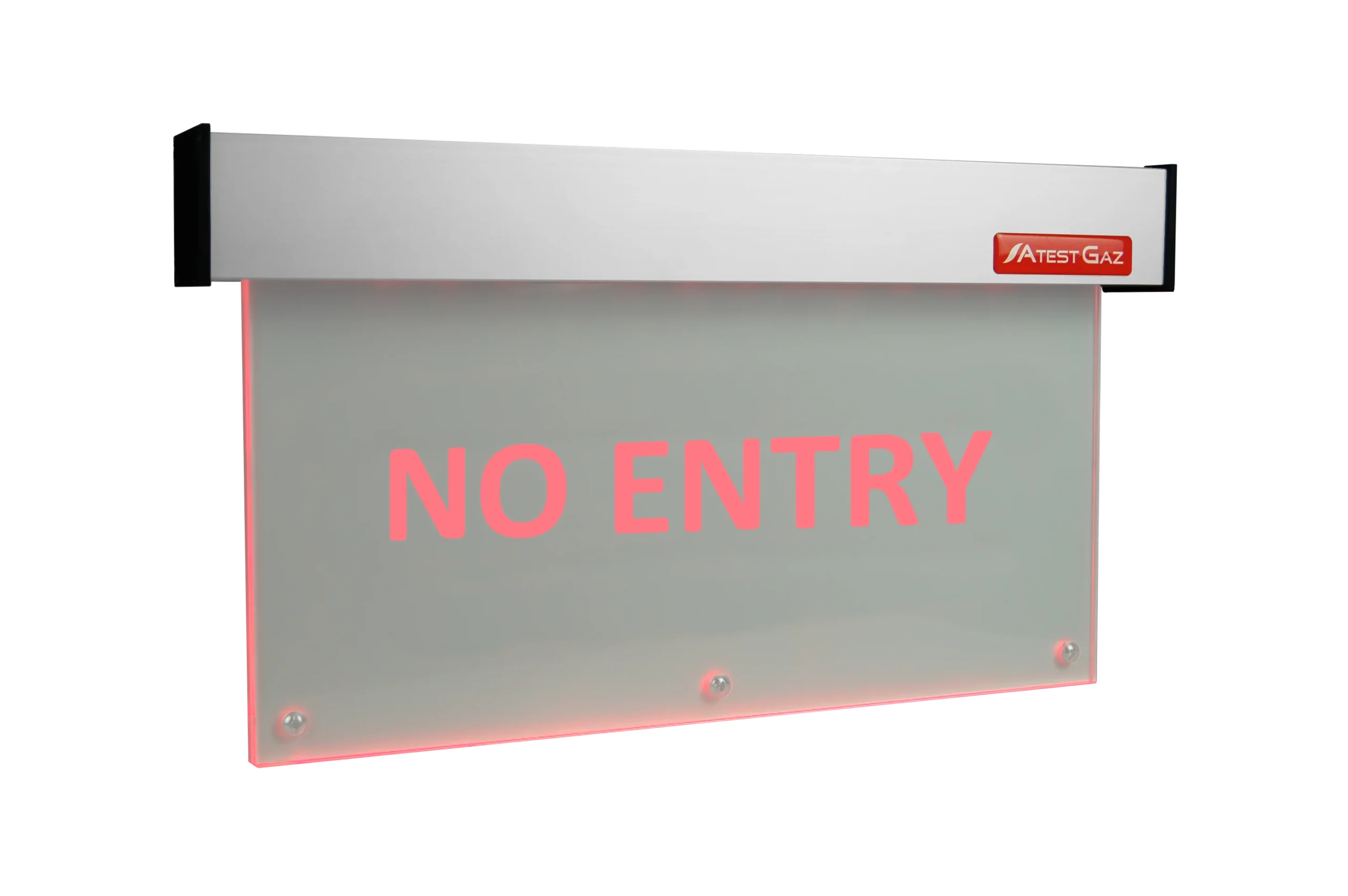

1/1 Signallers Warning LED Display TOLED Product code: PW-127-X TOLED Warning LED Display in the Teta design option is the only solution available nowadays on the Polish market that can send a feedback information to a system operator or a supervising control system when something goes wrong with the system wiring or with the field warning device itself. See full description Functionalities: Certificates: Product description Technical details Perfectly legible and visible information about hazards owing to TOLED Warning LED Display– the most advanced solution offered by Atest Gaz! TOLED Warning LED Display are addressable warning boards designed to display legible and visible information about possible gas hazards and intended for application in public facilities, such as underground car parks or parking spaces. When the warning system is defective no information about possible hazard is broadcasted to users of endangered areas, which exposes potential users of safeguarded facilities to extreme hazard. Thus, messages displayed in such boards must be legible and disseminated reliable regardless of possible defects. TOLED Warning LED Display of Teta design option make up a perfect supplement to the Gas Safety System Teta Gas – nowadays it is the only one solution available on the Polish market that meets the fault tolerance criteria, since in case of any malfunctioning of field wiring or a hardware defect of the field messaging device the control unit informs operators about the fault. That exceptional functionality is achieved owing to bidirectional digital communication system Teta BUS, where a single pair of wires is used both for power supply and for addressable data transmission to and from message boards and gas detector, hence the status of connections is fully monitored by a control unit. Other advantages of TOLED Warning LED Display include: three design options available for customers: power supply and control from the Teta BUS communication system, control by means of a contactor signal /power supply 15 – 50 V DC, control by means of a contactor signal /power supply 230 V AC, backlighted message flashing with the frequency of 1 Hz, optional sound signal (siren) automatically activated upon detection of a gas hazard, customized text of warning messages, possible indoor and outdoor mounting – index of protection as high as IP43. Power supply Voltage VCC 15 – 50 V / 230 V (PW-127-230-X) Power Short-term 3.6 W / 3.8 W (PW-127-230-X) Average 1.8 W / 2.0 W (PW-127-230-X) Maximum starting current 1.54 A / 0.52 A (PW-127-230-X) Environment Ambient temperatures -20 – +40 °C Humidity 10 – 90% long term, without condensation IP IP54 Integrated signalling equipment (visual) LED backlight Integrated signalling equipment (acoustic) Ca. 60 dB, 1 m distance Protection class PW-127-TETA-X, PW-127-48-X PW-127-230-X III II Cable glands (cable diameter range) Variable size gland Cable diameter from 5 to 10 mm Acceptable cables 0.2 – 2.5 mm2 – solid wire 0.2 – 2.5 mm2 – multi-wire cable (Use end sleeves 2×1 mm2 or 2 x 0.75 mm2 with lugs for two-wire cables) Enclosure material Aluminium, plastic Weight Ca. 0.4 kg Mounting Fixed to walls, ceilings or suspended on ropes Videos Placement and role in the system Files to downloadDatasheets:TOLED Warning LED Display - Datasheet Download fileCE declarations:TOLED Warning LED Display - Declaration of Conformity Download file Related products Control Unit ModulesTeta MOD Control 1SignallersWarning LED Display TOLEDSignallersTeta SOLERTGas DetectorsTeta EcoCO2Gas DetectorsTeta EcoDetGas DetectorsTeta EcoHGas DetectorsTeta EcoNGas DetectorsTeta EcoO2Gas DetectorsTeta EcoTermGas DetectorsTeta EcoWentGas DetectorsTeta MiniDet The Teta System Configurator This configurator allows you to declare specific devices as well as the distance between them – as a result, you receive a list of devices and dedicated cabling. Go to configurator Reliable and Innovative Gas Safety Systems
